Description

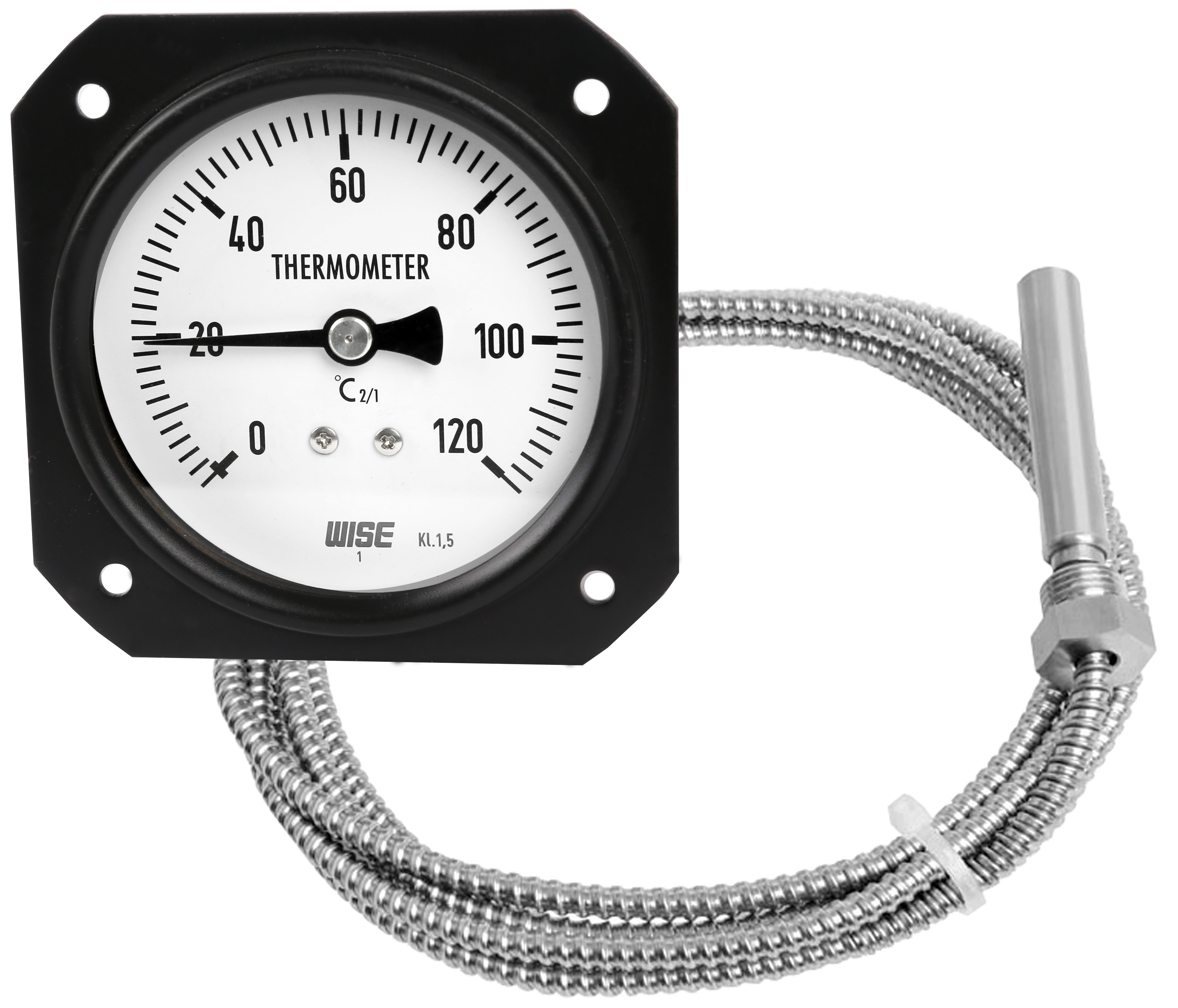

This thermometer is designed to withstand the shock and vibration inherent in heavy duty services.

Nominal diameter	80 mm
Accuracy	±1.5 % of full scale
Measuring system (SAMA class ⅢB)	Organic gas : 0 ~ 200 °C
Working range	Maximum scale value
Location of stem and mounting	Certer back connection, flush, cover mounting
Case and cover	Black finished bronze
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS
Window	Laminated safety glass
Dial	White aluminium with black graduations
Movement	Stainless steel Damper vibration and pulsation
Pointer	Black painted aluminium alloy
Stem	8.0, 10.0 and 12.0 mm 316SS and 316L SS
Zero adjustment	Internal
Stem, process connection	⅜", ½", ¾" PT, NPT and PF
Option	±1.0 % of full scale
Manufacturer

Datasheet:

All features and specifications subject to change without notice, delivery subject to availability, correction of errors and omissions excepted.
