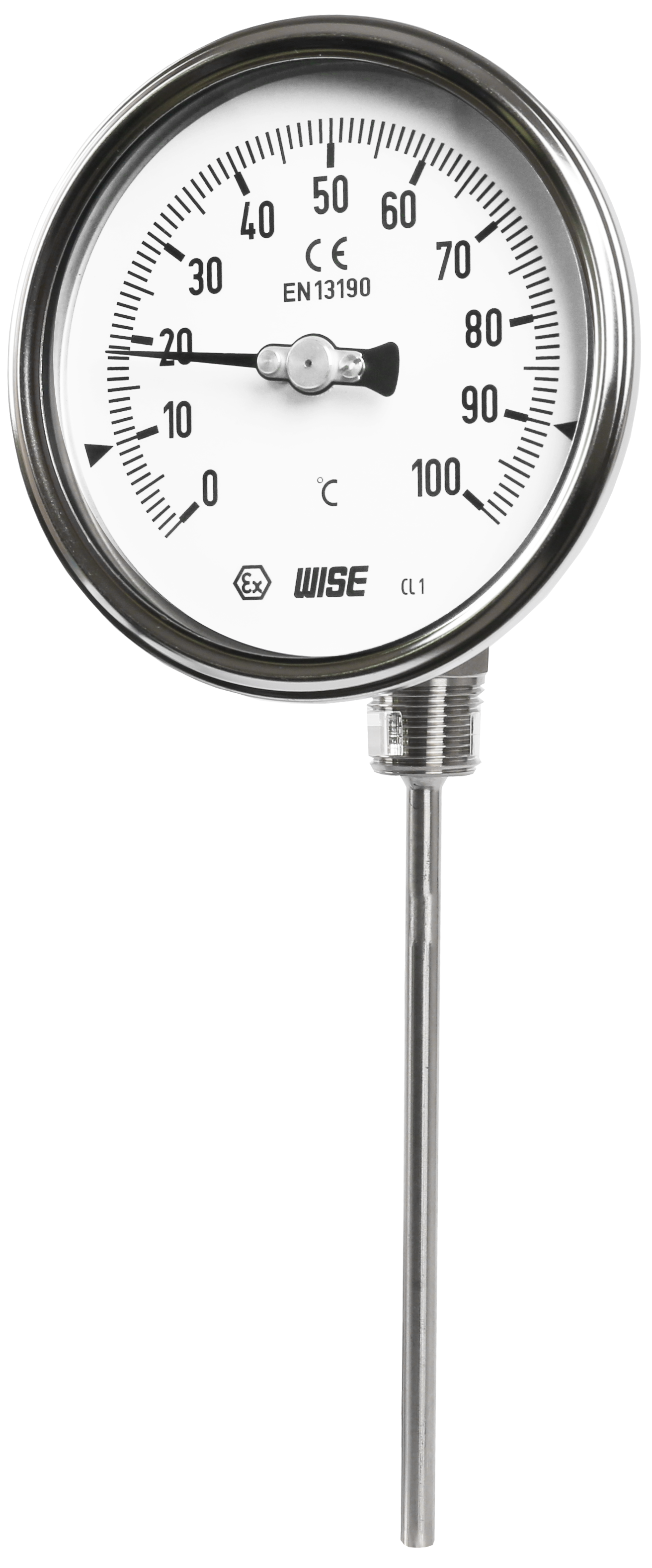

T191 HERMETICALLY SEALED CASE BIMETAL THERMOMETER WITH ADJUSTABLE STEM
Product image may differ from original
Manufacturer WISE-CONTROL
Bimetal thermometer is used for measuring temperature of gas or fluid. This thermometer prevents entry of moisture into the casing, thus minimizing the possibility of icing or fogging inside the case.
Description
Bimetal thermometer is used for measuring temperature of gas or fluid. This thermometer prevents entry of moisture into the casing, thus minimizing the possibility of icing or fogging inside the case.
| Nominal diameter | 75, 100, 125 and 150 mm |
| Accuracy | ±2.0 % of full scale |
| Temperature element | Coiled bimetal |
| Working range | Maximum scale value |
| Degree of protection | EN60529/IEC529/IP67 (125 mm) EN60529/IEC529/IP66 (100 mm) |
| Location of stem | Center back with adjustable stem |
| Case | Hermetically sealed, 316L SS |
| Cover | Hermetically sealed, 316L SS |
| Window | Safety glass |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Stem | 6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm |
| Zero adjustment | External |
| Stem, process connection | ¼", ⅜", ½", ¾" PT, NPT and PF |
| Option | ±1.0 % of full scale Window : Safety glass Special range : 0 ~ 600 ℃ |
| Manufacturer |  |
All features and specifications subject to change without notice, delivery subject to availability, correction of errors and omissions excepted.
