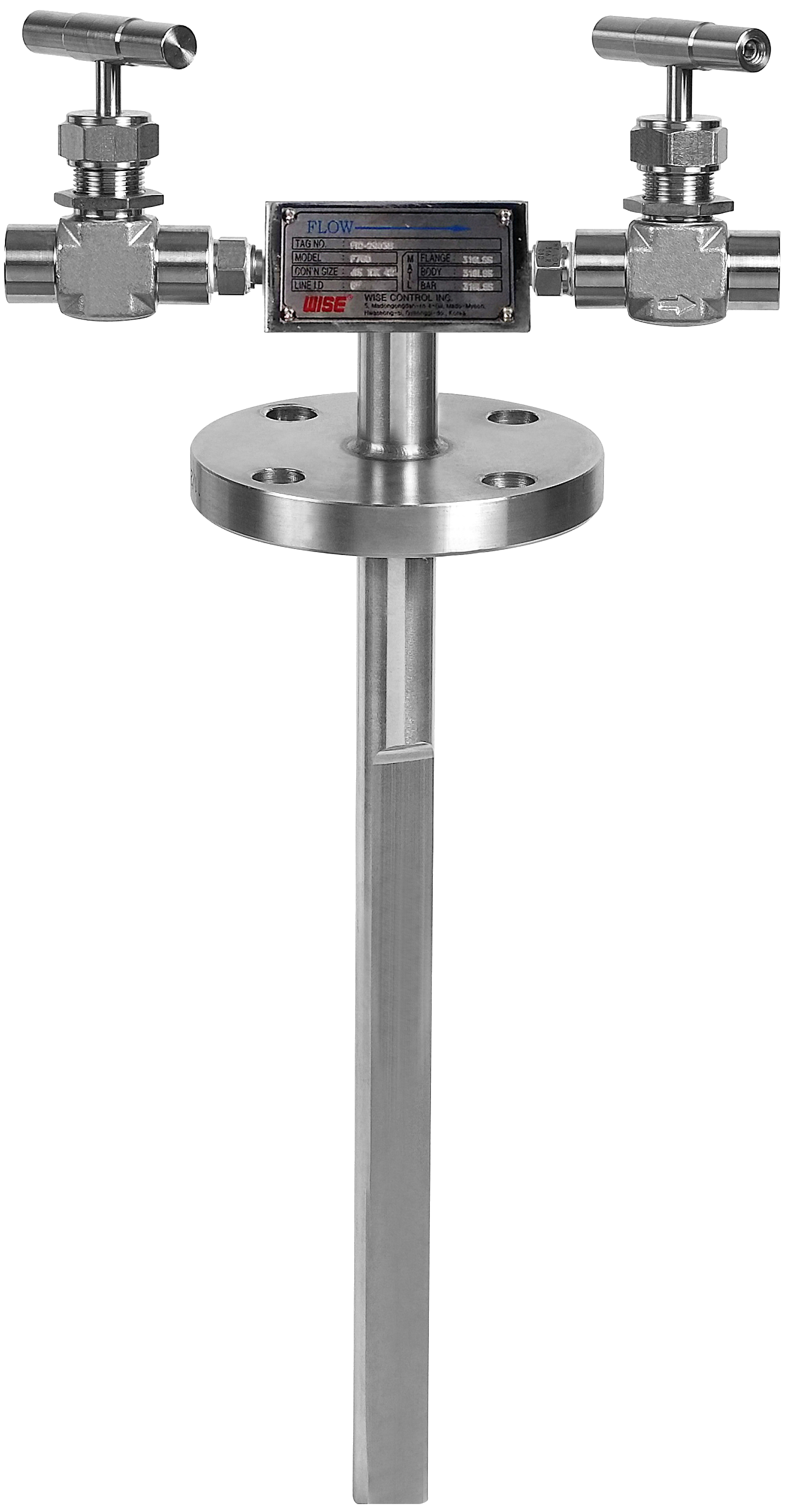

F760 Averaging pitot tube
Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
Averaging pitot tube is an energy saving device used to measuring the flow of liquids, gases and steam in pipes, stacks and rectangular ducts. It provides high, long term stability with low permanent pressure loss. Examples of their applications are precise volumetic flow measurement in batch processes, continuous measurement of liquid ingredients in the process industry, fuel, air, steam and gases as primary energy source as well as in control functions requiring a high degree of stability and repeatability.
Beschreibung
Averaging pitot tube is an energy saving device used to measuring the flow of liquids, gases and steam in pipes, stacks and rectangular ducts. It provides high, long term stability with low permanent pressure loss. Examples of their applications are precise volumetic flow measurement in batch processes, continuous measurement of liquid ingredients in the process industry, fuel, air, steam and gases as primary energy source as well as in control functions requiring a high degree of stability and repeatability.
| Advantages | ■ Unique profile shape enables high flow rate turn down ■ Dual averaging for better accuracy ■ Short upstream and downstream straight pipe lengths ■ Long term accuracy unaffected by wear |
| Measuring fluid | Liquid, Gas, Steam and etc. |
| Material | 304SS, 316SS, 316L SS and Monel Special materials are available |
| Pipe size | 50 ~ 1,800 mm 2" ~ 72" |
| Max. working pressure | 15 MPa |
| Max. working temperature | 600 ℃ |
| Accuracy | ±1 % of actual flow rate |
| Repeatability | ±0.1 % of actual flow rate or better |
| Rangeability | 0,417361111111111 |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
