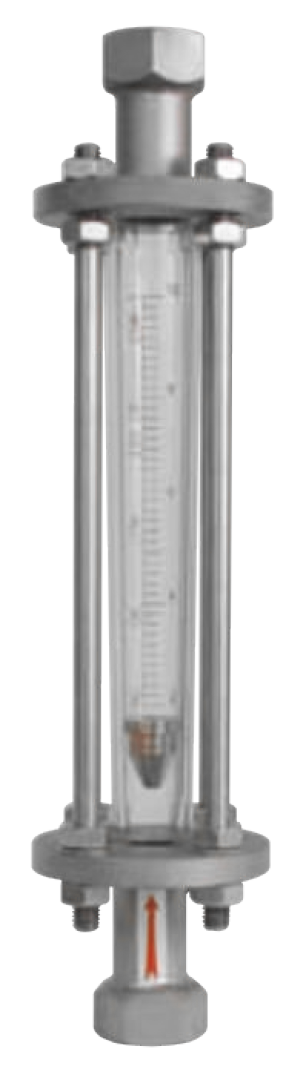

F802 GLASS TUBE FLOW METER SCREW CONNECTION
Beschreibung
The rotameter’s operation is based on the variable area principle : Fluid raises a float in a tapered tube, increasing the area for passage of the fluid. The height of the float is directly proportional to the flow rate.
Process connection | Screwed |
Size | 15A ~ 65A |
Material | Steel 304SS 316SS |
Pressure rating | Max.10 kgf/cm² |
Temperature rating | Max.120 ℃ |
Accuracy | ±2.0 % of full scale ±1.0 % of full scale (Option) |
