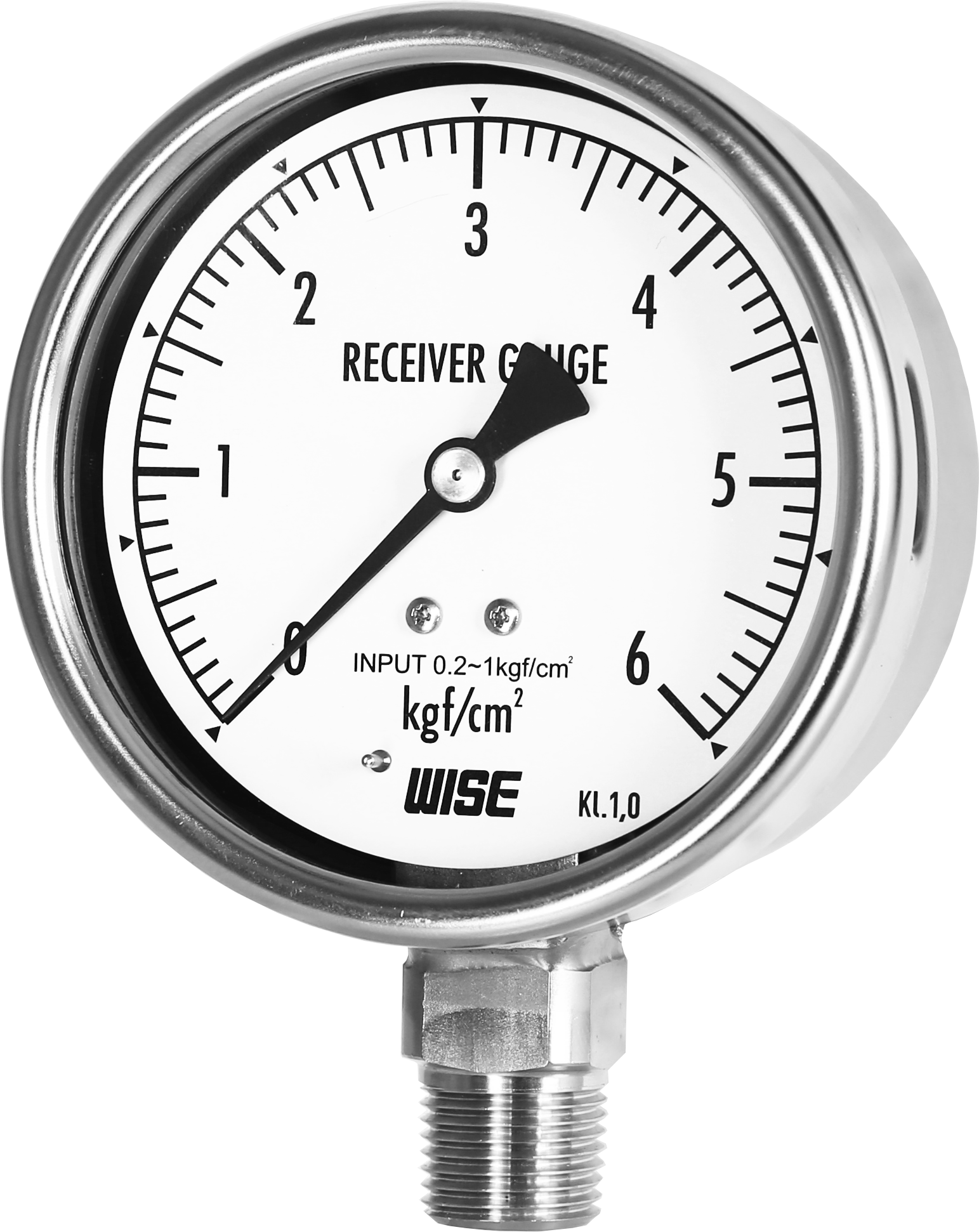

P228 RECEIVER GAUGE
Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
P228 series are designed to meet the general requirements of a process industry, and it could provide a remote or a local indication.
Beschreibung
P228 series are designed to meet the general requirements of a process industry, and it could provide a remote or a local indication.
| Nominal diameter | 100 and 160 mm |
| Accuracy | ±1.0 % of full scale |
| Scale range (MPa, kPa, bar) | 0 ~ 10 % square root scale 0 ~ 100 % linear scale |
| Working pressure | Steady : 75 % of full scale Over range protection : 130 % of full scale |
| Working temperature | Ambient : -40 ~ 65 °C Fluid : Max. 200 °C |
| Degree of protection | EN60529/IEC529/IP65 |
| Temperature effect | Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale |
| Pressure connection | Stainless steel (316SS) |
| Element | Stainless steel (316SS) C type bourdon tube |
| Case | Stainless steel (304SS) |
| Cover | Stainless steel (304SS) |
| Window | Safety glass |
| Movement | Stainless steel |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Process connection | ¼", ⅜", ½" PT, NPT and PF ¼" PT(F), ¼" NPT(F) |
| Process input | 0.02 ~ 0.1 MPa |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
