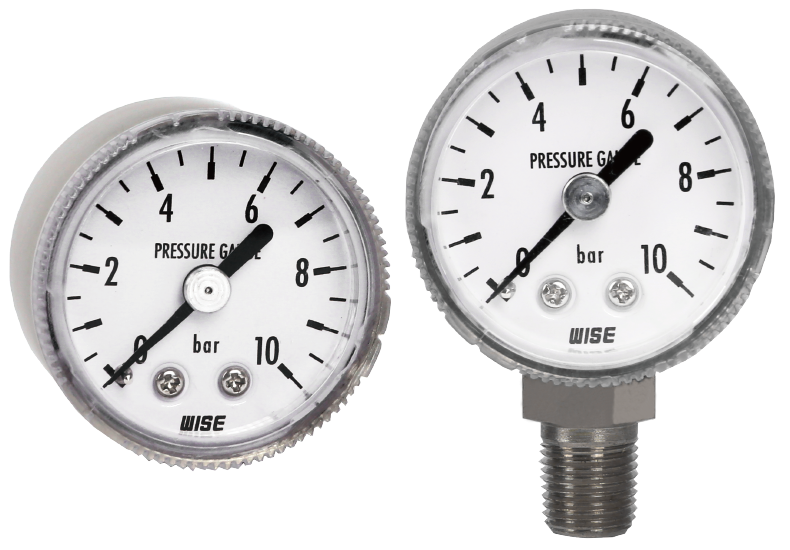

P235 MINIATURE PRESSURE GAUGE
Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
P235S and P235B series are miniature gauges. These gauges are designed to be installed in the narrow and the tight places where regular pressure gauges cannot be installed. Therefore, these gauges are useful for installation on small machines such as positioners. It shows the excellent performance where severe vibration is present.
Beschreibung
P235S and P235B series are miniature gauges. These gauges are designed to be installed in the narrow and the tight places where regular pressure gauges cannot be installed. Therefore, these gauges are useful for installation on small machines such as positioners. It shows the excellent performance where severe vibration is present.
| Nominal diameter | 35 mm |
| Accuracy | ±3.0 % of full scale |
| Scale range (MPa, kPa, bar) | 0 ~ 0.2 MPa to 0 ~ 3.5 MPa |
| Working pressure | Steady : 75 % of full scale Over range protection : 130 % of full scale |
| Working temperature | Ambient : P235S : -40 ~ 65 °C P235B : -20 ~ 60 °C Fluid : P235S : Max. 200 °C P235B : Max. 60 °C |
| Temperature effect | Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale |
| Pressure connection | P235S - Stainless steel (316SS) P235B - Brass |
| Element | "C" type bourdon tube P235S - Stainless steel (316SS) P235B - Brass |
| Case | Stainless steel (304SS) |
| Movement | Stainless steel (304SS) |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Process connection | ⅛", ¼" PT, NPT and PF |
| Option | Window : Safety glass with stainless steel cover |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
