Beschreibung

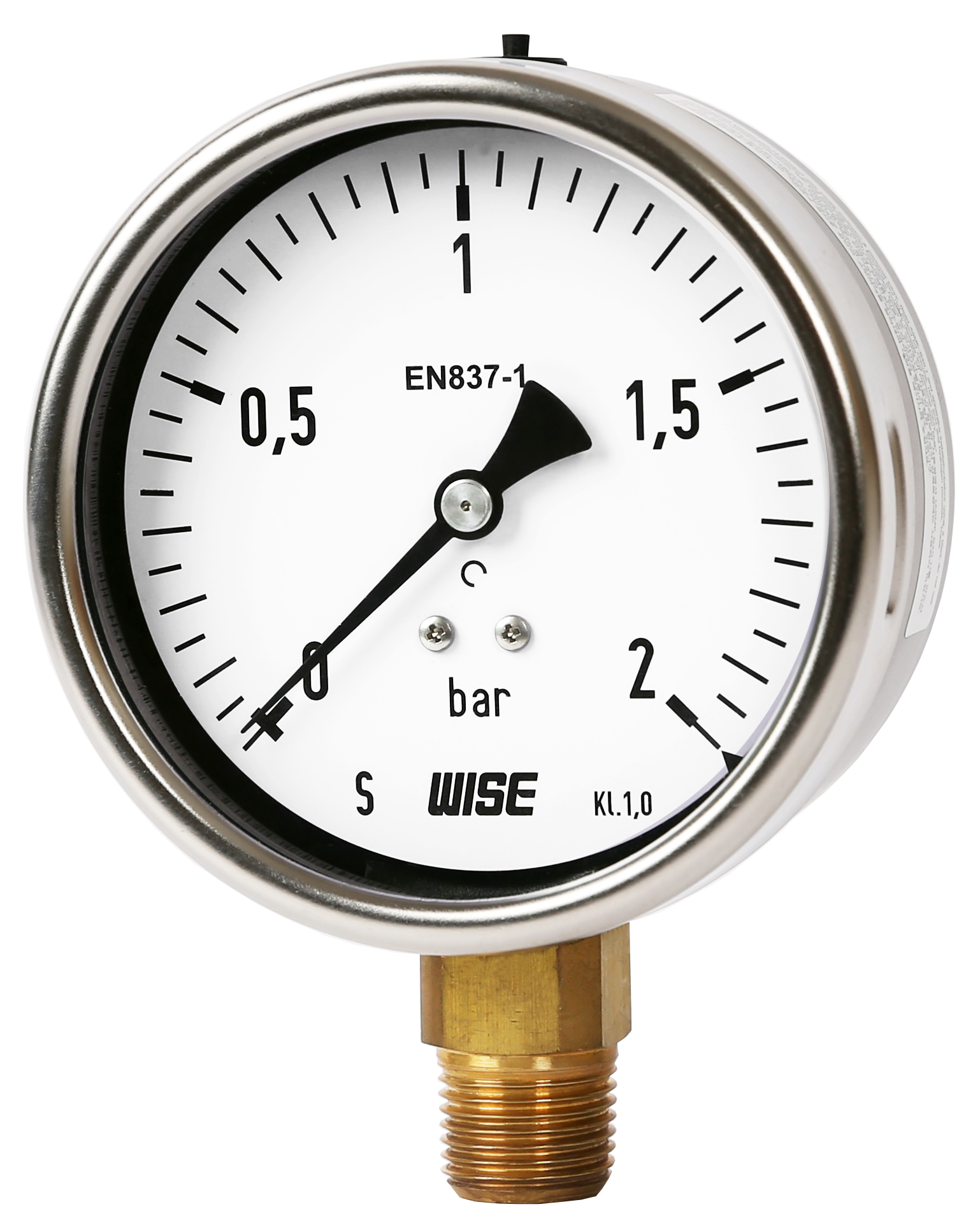

Sturdy industrial pressure gauge designed in compliance with the operational safety requirements of EN 837-1. Reliable pressure gauge for the machine and plant. For gaseous and liquid media that are not highly viscous or crystallising and will not attact copper alloy parts.

Nominal diameter	63, 100 and 160 mm
Accuracy	P2532 (63 mm) : ±1.6 % of full scale P2534 (100 mm) and P2536 (160 mm) : ±1.0 % of full scale
Scale range (MPa, kPa, bar)	63 mm : -0.1 ~ 0 to 0 ~ 35 MPa 100 and 160 mm : -0.1 ~ 0 to 0 ~ 100 MPa
Working pressure	Steady : 75 % of full scale (63 mm)            100 % of full scale (100 and 160 mm) Over range protection : 130 % of full scale
Working temperature	Ambient : -20 ~ 60 ℃ Fluid : Max. 60 ℃
Degree of protection	EN60529/IEC529/IP65
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale
Pressure connection	Brass
Element	Brass Model : P2534 (100 mm) and P2536 (160 mm) <10 MPa : C type bourdon tube ≥10 MPa : Helical type bourdon tube with 316SS Model : P2532 (63 mm) <6 MPa : C type bourdon tube ≥6 MPa : Helical type bourdon tube
Blowout protection	Back, Rubber disc for 100 and 160 mm Top, Rubber disc for 63 mm
Case	Stainless steel (304SS)
Cover	Stainless steel (304SS) Bayonet type
Window	Laminated safety glass
Movement	63 mm : Brass 100 and 160 mm : Stainless steel
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Process connection	63 mm : ¼" PT, NPT and PF 100 and 160 mm : ¼", ⅜", ½" PT, NPT and PF
Certificates	ATEX Ex II GD c IIc TX
Option	Zero adjustable pointer (Only available with diameter 100 and 160 mm)
