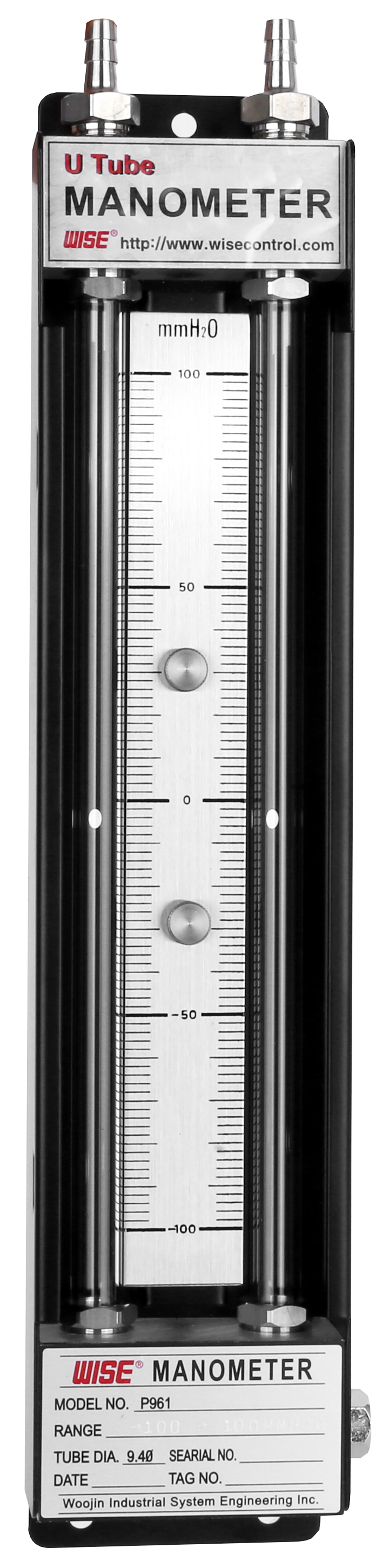

P961 MANOMETER
Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
P960 series manometer is a pressure measuring instrument, and it measures the for calibration of all pressure instruments. It is suitable for measuring low and vacuum pressure.
Beschreibung
P960 series manometer is a pressure measuring instrument, and it measures the for calibration of all pressure instruments. It is suitable for measuring low and vacuum pressure.
| Scale range | U type : 0 ~ ±100 to 0 ~ ±600 mm Inclined type : 0 ~ 30, 60 and 150 mm Wall type : 0 ~ 500, 1,000 and 1,500 mm |
| Pressure connection | Stainless steel (304SS) tube connection for 8 mm |
| Tube | Material : Glass Outer diameter : 12 mm In diameter : 9.4 mm (P961) 5.0 mm (P962, P963, P964, P965) |
| Working temperature | Ambient : 15 ~ 25 ˚C Fluid : Max. 35 ˚C |
| Measuring liquid | Anti freezing liquid Water |
| Scale plate | White aluminium with stainless steel Black graduation 2 mm |
| Base plate | SCP2, Black painted Option : 304SS |
| Mounting | Surface mounting |
| Option | 304SS, Black painted |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
