P930 PRESSURE RECORDER

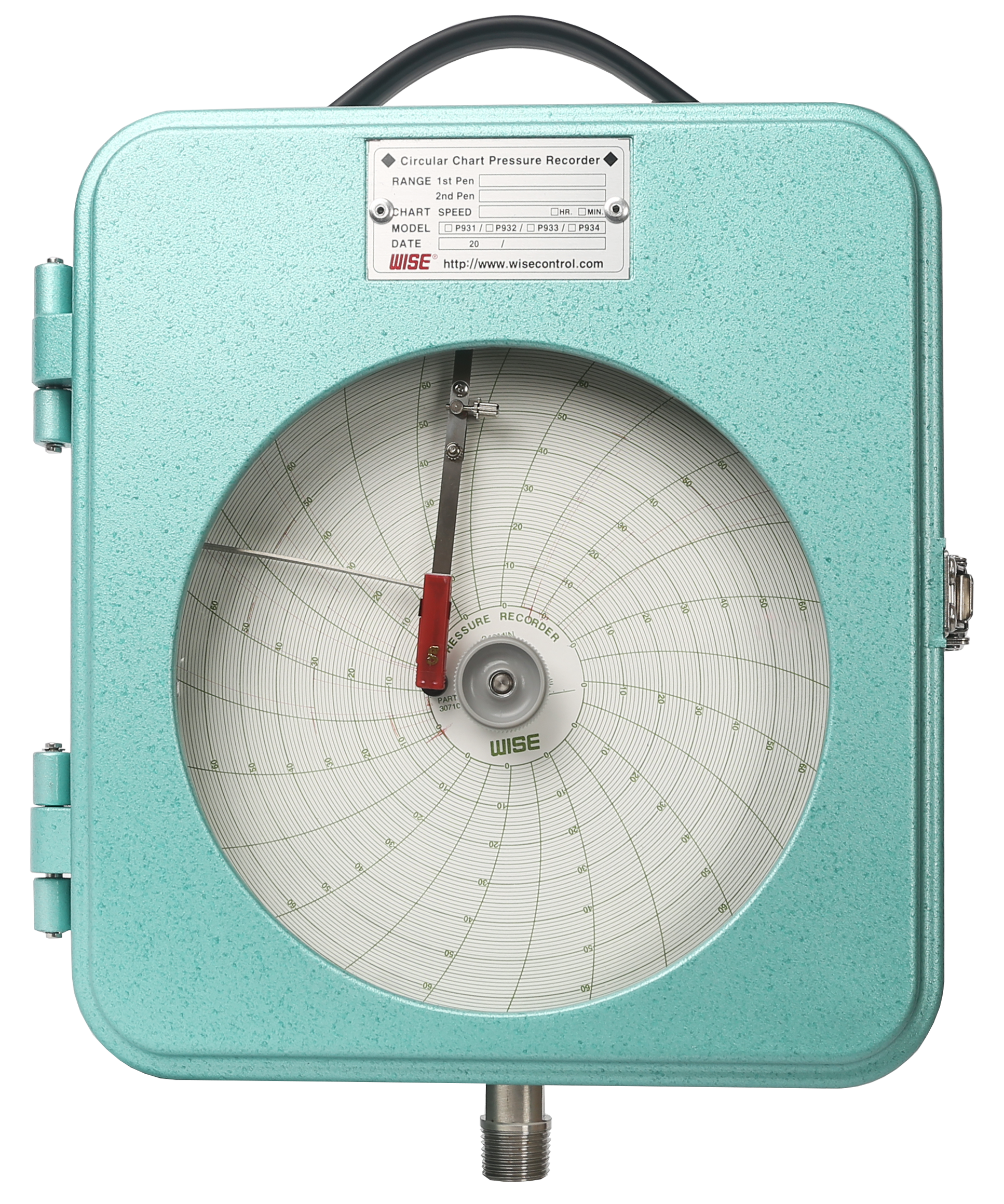

Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
P930 series pressure recorder provides a single or dual pen 200 mm circular chart recorder for measurement. It is suitable for hazardous environment such as gas or chemical process lines.
Beschreibung
P930 series pressure recorder provides a single or dual pen 200 mm circular chart recorder for measurement. It is suitable for hazardous environment such as gas or chemical process lines.
| Nominal diameter | 246 (W) X 271 mm (H) |
| Accuracy | ±2.0 % of full scale |
| Scale range (MPa, kPa, bar) | Pressure : 0 ~ 5 kPa to 0 ~ 100 MPa |
| Working pressure | Steady pressure : 75 % of full scale Over range protection : 130 % of full scale |
| Working temperature | Ambient : -40 ~ 65 ℃ Fluid : Max. 200 ℃ |
| Pressure connection | Stainless steel (316SS) |
| Element | Bourdon tube : Stainless steel (316SS) Bellows : Brass |
| Case and cover | ALDC 12.1 Hinged door |
| Window | Acrylic resin |
| Movement | Brass |
| Chart drive | 1. Spring wound type : 24, 168 (7 day) hours rotation 2. Battery type : 30 min, 96 min, 1, 2, 4, 6, 8, 12 hours and 1, 2, 7, 8, 14, 16, 31, 32 days selectable for portable type |
| Chart paper | 200 mm circular |
| Mounting | Surface mounting and portable type |
| Process connection | ⅜", ½" PT, NPT and PF |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
